Infinity Tournament is the ultimate expression of our experience, innovation, and technical precision. Engineered to meet the highest standards of professional padel, this court reinforces our leadership in the manufacturing and installation of world-class tournament courts, no matter the location.
From iconic urban settings to extreme environments, JUBO Padel has proven its ability to push the boundaries of padel. Events like the A1 Padel Grand Master in Central Park, the Masters in Monaco, the Sanlúcar Open or the Padel Copa in Utrecht stand as testaments to our expertise in installing courts in challenging locations, ensuring optimal performance and an unmatched playing experience.
.Infinity Tournament court complies with the regulations of the International Padel Federation and with the most restrictive requirements established by the Eurocodes.
Infinity Tournament

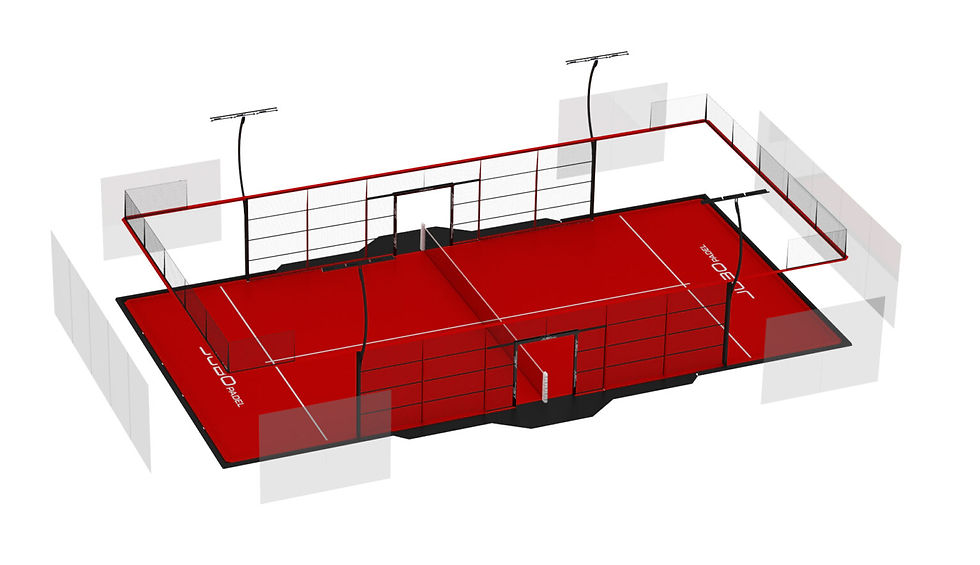

According to the standards of the International Padel Federation for tempered glass, 12mm thick with flat polished edge, with perfect planimetry and fully homologated according with the WPT, Premier Padel and APT designs: 18 glasses of 2995x1995mm, with countersunk holes (108m²).
Rubber joints of the highest quality, with the same thickness as the metal section, to absorb shock and vibration of the glass against the metal structure.
Anchoring of tempered glass with M10 countersunk screws A4 stainless steel.
Tempered Glass

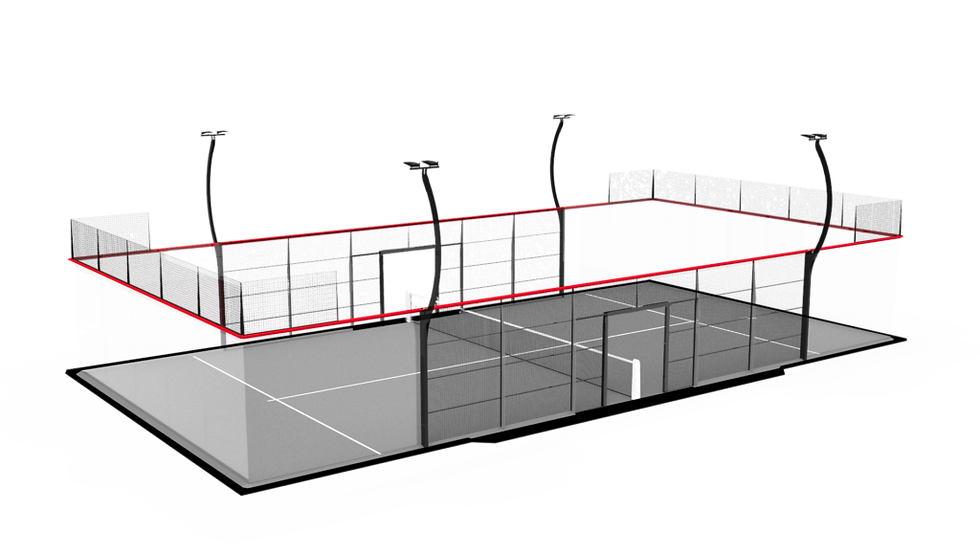

Panoramic walls supported by a triangular profile (150x70mm) along the 60 perimetral meters of the structure, with a patented structural system designed to obtain the maximum resistance required by the Eurocode.
Patented structural system
.png)
It anchors and levels the metal structure, as well as supporting the glass. Thick plates along the 60 perimetral meters of the structure, uniformising the distribution of loads in a much larger area, achieving a much more stable game and resistance, working all together as a block. The complete structure is anchored to the ground with a total of 182 screw-bolts.
Patented anchor plates system
Design without barriers
Technical Specifications
All the metal used to produce the metallic structure is carbon steel S355 full galvanized without using welds, & the mesh frames are manufactured with Magnelis® steel.
Certified
Paint
Qualisteelcoat® C4H and C5VH (ISO 12944).
Support of the structure
Four 160x80x3mm pillars and 8mm thick buttress-plates (customizable) are the central support of the structure, designed to distribute both the load and the stress of the complete structure.
Net Posts Matching the Structure
Rounded shape without corners, with an internal tensioning system accessible with a hinged lid and hidden anchor plate to avoid injuries.
Large open
entrances
Two large open entrances in the centre of the court to facilitate players’ quick and safe access and exit.
Patented
thick frames
Magnelis® steel frames (54 pieces) of 5mm thickness with inner 50x50x4 mm electrowelded wire mesh. Designed as an anti-injury system.
